Dual Motor Electric Sit-Stand Desk with Square Column (Standard) M07-23D Design for Upgraded Lifting Experience! from china(chinese)

M07-23D

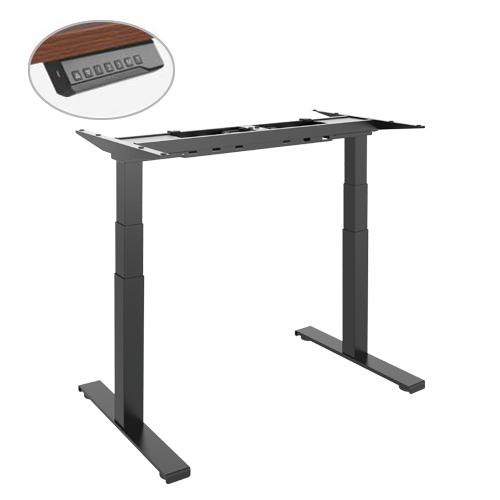

Dual Motor Electric Sit-Stand Desk with Square Column (Standard)

Design for Upgraded Lifting Experience!

Description

The M07 Sit Stand frames combine aesthetics with functionality. Beneath the smooth exterior lies an actuator mechanism for stable height adjustments. The programmable digital controller includes advanced memory and timer functions, promoting healthier work habits. The proprietary Gyro-Current collision avoidance system ensures safety by detecting under-desk objects. The M07-23D offers a refined approach to daily work, enhancing productivity and well-being.

Color:

FEATURES

●Motor(s) is(are) Thermal and Overload Protected: for safety and longevity

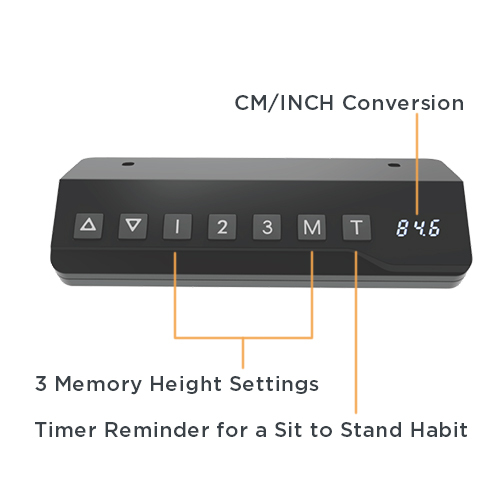

●Digital LED Memory Controller: for customizable settings

●3 Programmable Memory: presets save your desired height

●Sit/Stand Time Reminder: for regular movement

●Programmable height range: customizes the minimum and maximum height settings to accommodate objects around you, such as under desk cabinets or storage units

●Programmable Proprietary Gyro-Current Collision Avoidance System: improved sensing technology for better detection of soft and hard objects in the movement path

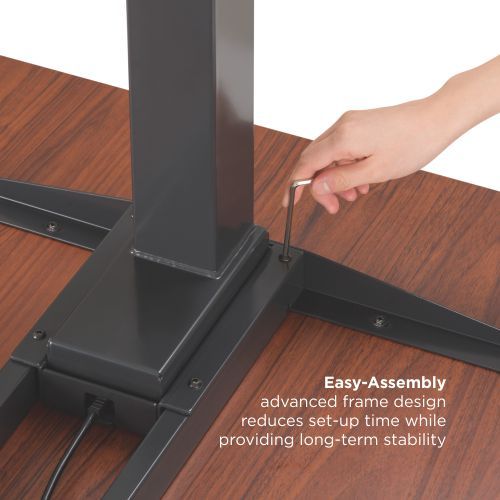

●Easy-Assembly: advanced frame design reduces set-up time while providing long-term stability for confident daily use

●Three Stage Standard Column: offers more adjustability

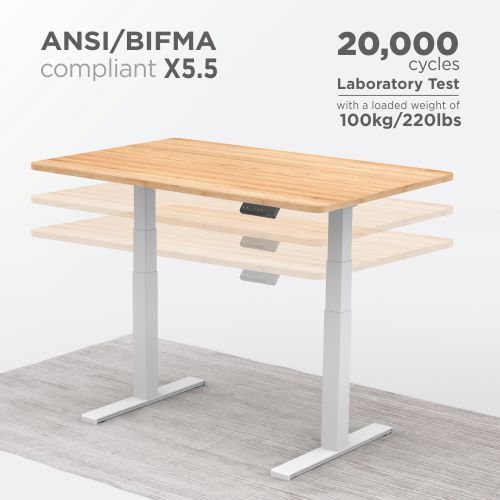

●BIFMA Compliant: meets and exceed BIFMA X5.5-2014 standard for stability and durability

Motor(s) is(are) Thermal and Overload Protected: for safety and longevity
Digital LED Memory Controller: for customizable settings
3 Programmable Memory: presets save your desired height
Sit/Stand Time Reminder: for regular movement
Programmable height range: customizes the minimum and maximum height settings to accommodate objects around you, such as under desk cabinets or storage units
Programmable Proprietary Gyro-Current Collision Avoidance System: improved sensing technology for better detection of soft and hard objects in the movement path
Easy-Assembly: advanced frame design reduces set-up time while providing long-term stability for confident daily use
Three Stage Standard Column: offers more adjustability
BIFMA Compliant: meets and exceed BIFMA X5.5-2014 standard for stability and durability

SPECIFICATIONS

Product Category:	Electric Sit-Stand Desk
Rank:	Premium
Material:	Steel,Plastic

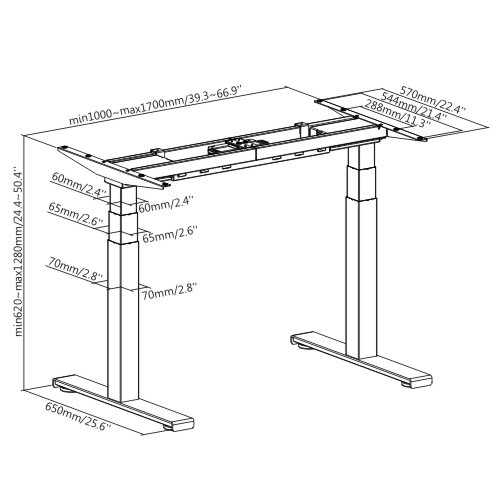

Dimensions:	1000~1700x650x620~1280mm (39.4"~66.9"x25.6"x24.4"~50.4")
Frame Orientation:	Rectangular
Tabletop Size:	(1100~2200)x(700~1000)mm (（43.3"~86.6"）x（27.6"~39.4"）)
Tabletop Thickness:	≥18mm (≥0.71")
Weight Capacity:	125kg (275lbs)
Width Range:	1000~1700mm (39.4"~66.9")
Height Range:	620~1280mm (24.4"~50.4")
Column Design:	Standard Column
Column Segments:	Three Stage Column
Column Size:	60x60、65x65、70x70mm
Leg Quantity:	Two Legs

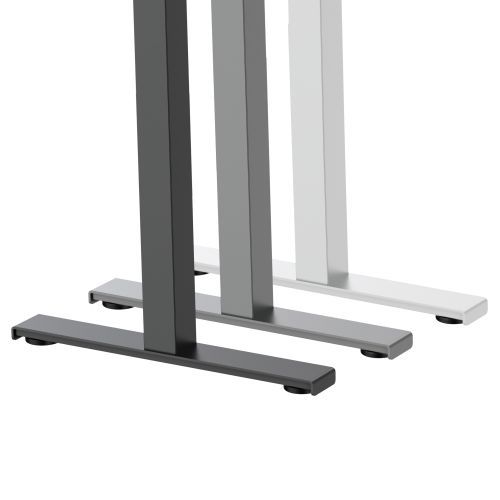

Frame Color:	Black (AkzoNobel Powder Coat),White (AkzoNobel Powder Coat),Grey (AkzoNobel Powder Coat)
Adjustable Feet Pad:	Yes
Motor Quantity:	2
Power Input:	100~240V
Power Cord Length:	3m (9.8ft)
Max. Speed:	38mm/s
Controller Type:	Button Control Panel
Time Reminder:	Yes
Suggested Operating Temperature:	-5℃~40℃
IP Grade:	IP20
Certification:	BIFMA,CB AS/NZS Report for National Differences,CE,EN527,ErP,FCC,RoHS,UKCA,UL
Accessory Kit Package:	Normal/Ziplock Polybag
Controller Type:	CT07

Product Category:	Electric Sit-Stand Desk
Rank:	Premium
Material:	Steel,Plastic
Dimensions:	1000~1700x650x620~1280mm (39.4"~66.9"x25.6"x24.4"~50.4")
Frame Orientation:	Rectangular
Tabletop Size:	(1100~2200)x(700~1000)mm (（43.3"~86.6"）x（27.6"~39.4"）)
Tabletop Thickness:	≥18mm (≥0.71")
Weight Capacity:	125kg (275lbs)
Width Range:	1000~1700mm (39.4"~66.9")
Height Range:	620~1280mm (24.4"~50.4")
Column Design:	Standard Column
Column Segments:	Three Stage Column
Column Size:	60x60、65x65、70x70mm
Leg Quantity:	Two Legs

Frame Color:	Black (AkzoNobel Powder Coat),White (AkzoNobel Powder Coat),Grey (AkzoNobel Powder Coat)
Adjustable Feet Pad:	Yes
Motor Quantity:	2
Power Input:	100~240V
Power Cord Length:	3m (9.8ft)
Max. Speed:	38mm/s
Controller Type:	Button Control Panel
Time Reminder:	Yes
Suggested Operating Temperature:	-5℃~40℃
IP Grade:	IP20
Certification:	BIFMA,CB AS/NZS Report for National Differences,CE,EN527,ErP,FCC,RoHS,UKCA,UL
Accessory Kit Package:	Normal/Ziplock Polybag
Controller Type:	CT07
