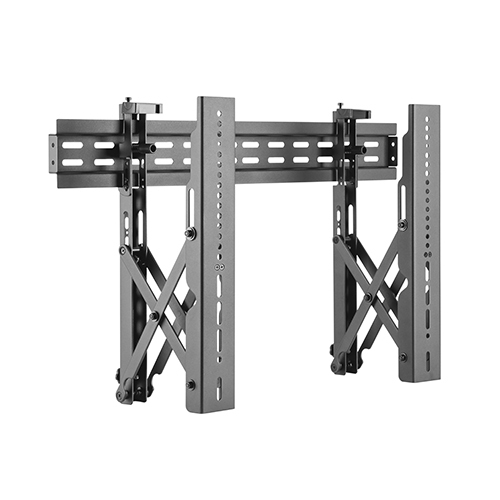

LVW02-46T

Pop-Out Video Wall Mount

For most 37”-70” LED, LCD flat panel TVs
Description

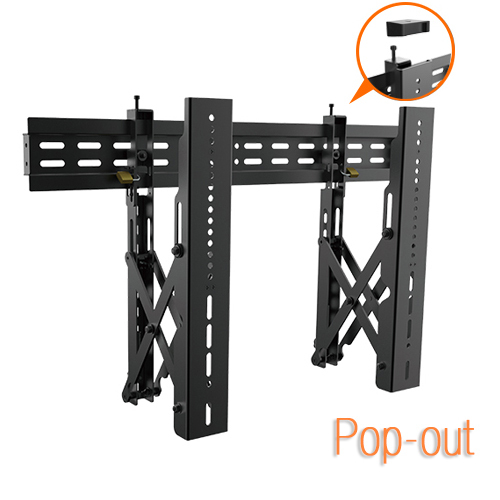

LVW02-46T is a professional video wall mount designed to offer the ultimate in versatility and universal compatibility with load capacity of 45kg/99lbs and max. VESA 600x400 hole pattern. This mount extends out 202mm from wall by a press with pop-out function and places 60mm to wall when retracted with quick lock mechanism. Lateral shift brackets and built-in screen level adjustment for seamless display alignment and level. It is the perfect solution for public and commercial displays with anti-theft design (require for a padlock). To customize multiple screen display solution, please use with connect plates.

Color:
FEATURES
SPECIFICATIONS
VIDEO
How to Install | LVW02-46T
RESOURCES
LVW02 Series-Multi-screen Video wall mounts
PDF
