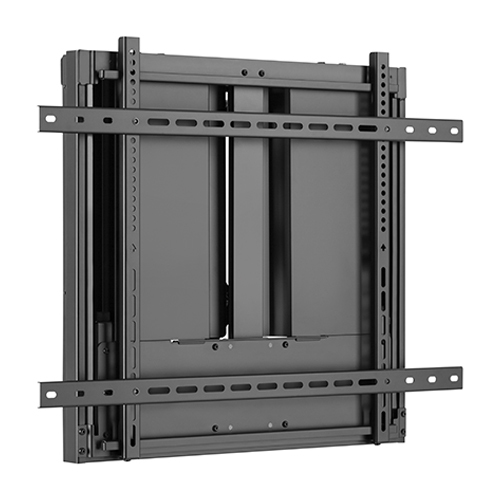

Height-Adjustable Wall Mount for Interactive Displays HAW400-90 For 70"-90" Displays from china(chinese)

HAW400-90

Height-Adjustable Wall Mount for Interactive Displays

For 70"-90" Displays

Description

With a light hand touch, the HAW400-90 allows the display to be raised or lowered at any position and a compact design allows it to fit nicely behind the screen when not in use. A high-grade black powder-coated finish provides an attractive anti-scratch surface that complements any decor. With the weight balance design and multiple VESA size options, the HAW400-90 will fit most any whiteboard or display in the market today. Keyhole pattern makes installation easy and quick.

Color:

FEATURES

●Smooth and Effortless Height Adjustment: high-low adjustment with finger touch positioning

●Weight Balance Design: easily accommodates the different weights of displays

●Keyhole Pattern: allows for easy installation

●Compact Design: allows the mount to hide behind the screen when not in use

●High Quality Powder-Coated Finish: features a stylish anti-scratch surface

Smooth and Effortless Height Adjustment: high-low adjustment with finger touch positioning
Weight Balance Design: easily accommodates the different weights of displays
Keyhole Pattern: allows for easy installation
Compact Design: allows the mount to hide behind the screen when not in use
High Quality Powder-Coated Finish: features a stylish anti-scratch surface

SPECIFICATIONS

Product Category:	Interactive Whiteboard Wall Mount
Rank:	Premium
Material:	Aluminum,Steel,Plastic
Metal Sheet Thickness:	Bracket Arm THK=2mm cold-rolled sheet,Wall Plate THK=3mm pickling sheet (Bracket Arm THK=0.079" cold-rolled sheet,Wall Plate THK=0.12" pickling sheet)
Surface Finish:	Powder Coating,Electroplating
Color:	Matte Black

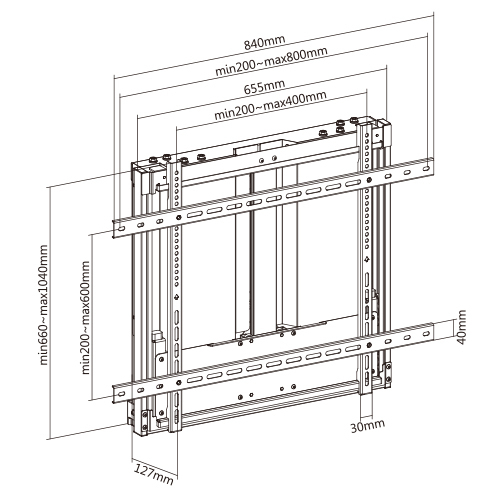

Dimensions:	127x840x660mm (5"x33.1"x26")
Fit Screen Size:	70"-90"
Fit Curved TV:	No
VESA Compatible:	200x200,300x200,400x200,300x300,400x300,400x400,600x400,700x400,800x400,800x500,800x600
Max. Mounting Hole:	800x600
Weight Capacity:	60~90kg (132lbs~198lbs)
Strength Tested:	4 Times Approved

Profile:	127mm (5")
Screen Freely Tilting:	No
TV Height Range:	400mm (15.7")
Installation:	Solid Wall,Double Stud(406mm/450mm)
Panel Type:	Detachable Panel
Wall Plate Type:	Fixed Wall Plate
AV Component Shelf:	No
Direction Indicator:	Yes
Cable Management:	No
Anti-theft:	No
Bubble Level:	Hook-on Bubble Level(Included in Components Package)
Accessory Kit Package:	Normal/Ziplock Polybag,Compartment Polybag

Product Category:	Interactive Whiteboard Wall Mount
Rank:	Premium
Material:	Aluminum,Steel,Plastic
Metal Sheet Thickness:	Bracket Arm THK=2mm cold-rolled sheet,Wall Plate THK=3mm pickling sheet (Bracket Arm THK=0.079" cold-rolled sheet,Wall Plate THK=0.12" pickling sheet)
Surface Finish:	Powder Coating,Electroplating
Color:	Matte Black
Dimensions:	127x840x660mm (5"x33.1"x26")
Fit Screen Size:	70"-90"
Fit Curved TV:	No
VESA Compatible:	200x200,300x200,400x200,300x300,400x300,400x400,600x400,700x400,800x400,800x500,800x600
Max. Mounting Hole:	800x600
Weight Capacity:	60~90kg (132lbs~198lbs)
Strength Tested:	4 Times Approved

Profile:	127mm (5")
Screen Freely Tilting:	No
TV Height Range:	400mm (15.7")
Installation:	Solid Wall,Double Stud(406mm/450mm)
Panel Type:	Detachable Panel
Wall Plate Type:	Fixed Wall Plate
AV Component Shelf:	No
Direction Indicator:	Yes
Cable Management:	No
Anti-theft:	No
Bubble Level:	Hook-on Bubble Level(Included in Components Package)
Accessory Kit Package:	Normal/Ziplock Polybag,Compartment Polybag

VIDEO

How to Install | HAW400-90

RESOURCES

HAW400 Series-Height-Adjustable Wall Mounts for Interactive Displays

PDF
