Atlas Neo Gaming Pole-Mounted Monitor Arm LDT95-C012P Unmatched strength for screens up to 57”, 30kg (66lbs) from china(chinese)

LDT95-C012P

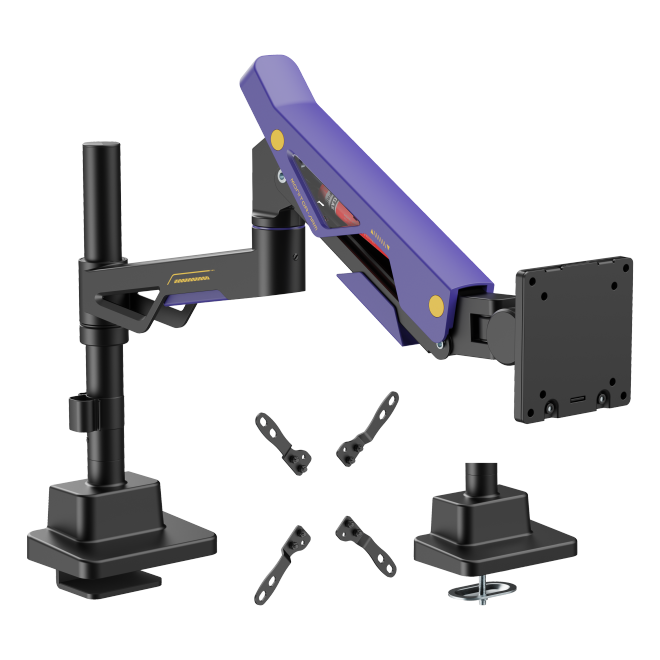

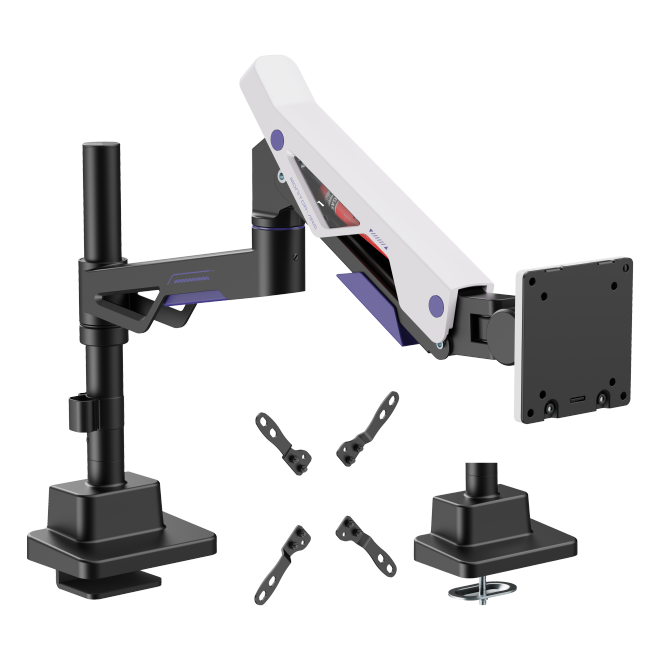

Atlas Neo Gaming Pole-Mounted Monitor Arm

Unmatched strength for screens up to 57”, 30kg (66lbs)

Description

The Heavy-Duty Gaming Monitor Arm is engineered for ultrawide monitors up to 57" and 30kg (66lbs), meeting the rising demand for high-performance gaming setups. Its innovative head structure, featuring a built-in one-way bearing, ensures friction-free tilt adjustments for heavy screens. The futuristic design aligns seamlessly with gaming aesthetics, while the topside installation simplifies the setup process by eliminating the need to work underneath desks. A perfect solution for stable and stylish monitor support in gaming environments.

Color:

FEATURES

●Support weight up to 30kg (66 lbs): easily reposition large curved/flat monitors

●One-Way Bearing Head Tilting Structure: eliminates friction when tilting for effortless adjustment

●Detachable VESA Plate Design: enables easy installation

●Installs from Top Side: installs entirely from above the desk surface

●Freely Adjusting Height: for an optimal ergonomic position

●360° Rotary VESA Plate: for more viewing experience

●Swivel Ability: for multiple screen viewing angles

●Free-Tilting Design: makes easy forward or backward adjustment for better viewing and reduced glare

Support weight up to 30kg (66 lbs): easily reposition large curved/flat monitors
One-Way Bearing Head Tilting Structure: eliminates friction when tilting for effortless adjustment
Detachable VESA Plate Design: enables easy installation
Installs from Top Side: installs entirely from above the desk surface
Freely Adjusting Height: for an optimal ergonomic position
360° Rotary VESA Plate: for more viewing experience
Swivel Ability: for multiple screen viewing angles
Free-Tilting Design: makes easy forward or backward adjustment for better viewing and reduced glare

SPECIFICATIONS

Product Category:	Gas Spring Monitor Arm
Rank:	Standard
Material:	Aluminum,Steel,Plastic
Surface Finish:	Powder Coating
Color:	Matte Black & White

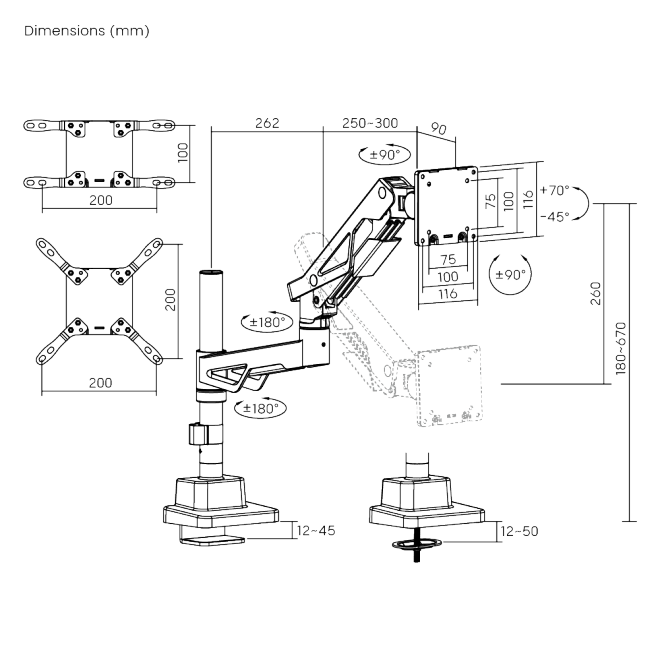

Dimensions:	156x630x710mm (6.1"x24.8"x28")
Fit Screen Size:	24"-57"
Fit Curved Monitor:	Yes
Screen Quantity:	1
Weight Capacity (per screen):	2~30kg (4.4lbs~66lbs)
Weight Capacity for Curved Screen (per screen):	2~24kg (4.4lbs~52.8lbs)

VESA Compatible:	75x75,100x100,100x200,200x100,200x200
Tilt Range:	+70°~-45°
Swivel Range:	+90°~-90°
Screen Rotation:	+90°~-90°
Arm Full Extension:	562mm (22.1")
Pole Height:	388mm (15.3" )
Installation:	Clamp,Grommet
Suggested Desktop Thickness:	Clamp:12~45mm Grommet:12~50mm (Clamp:0.47"~1.8" Grommet:0.47"~2")
Quick Release VESA Plate:	Yes
Cable Management:	Yes
Accessory Kit Package:	Normal/Ziplock Polybag,Compartment Polybag

Product Category:	Gas Spring Monitor Arm
Rank:	Standard
Material:	Aluminum,Steel,Plastic
Surface Finish:	Powder Coating
Color:	Matte Black & White
Dimensions:	156x630x710mm (6.1"x24.8"x28")
Fit Screen Size:	24"-57"
Fit Curved Monitor:	Yes
Screen Quantity:	1
Weight Capacity (per screen):	2~30kg (4.4lbs~66lbs)
Weight Capacity for Curved Screen (per screen):	2~24kg (4.4lbs~52.8lbs)

VESA Compatible:	75x75,100x100,100x200,200x100,200x200
Tilt Range:	+70°~-45°
Swivel Range:	+90°~-90°
Screen Rotation:	+90°~-90°
Arm Full Extension:	562mm (22.1")
Pole Height:	388mm (15.3" )
Installation:	Clamp,Grommet
Suggested Desktop Thickness:	Clamp:12~45mm Grommet:12~50mm (Clamp:0.47"~1.8" Grommet:0.47"~2")
Quick Release VESA Plate:	Yes
Cable Management:	Yes
Accessory Kit Package:	Normal/Ziplock Polybag,Compartment Polybag
