Contemporary 3-Stage Dual-Motor Sit-Stand Desk (Standard) M08-23DE Stay on the move and bring vibrancy to the work. from china(chinese)

M08-23DE

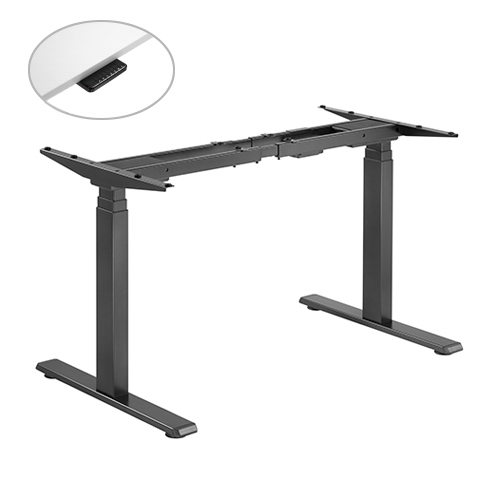

Contemporary 3-Stage Dual-Motor Sit-Stand Desk (Standard)

Stay on the move and bring vibrancy to the work.

Description

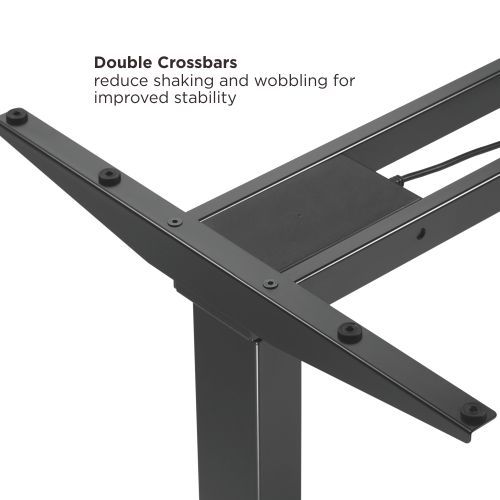

M08-23DE features strong lifting power and double crossbars for exceptional functionality and stability. The newly designed control panel adds a dash of sleek contemporary style to the desk. Brateck’s proprietary gyro-current collision avoidance system offers improved sensitivity and detection of objects that may enter the moving path. The desk frame is available in three color options (black, grey or white) fitting most any office or home décor. Competitively priced for the reseller and packaged for the lowest shipping and storage costs.

Color:

FEATURES

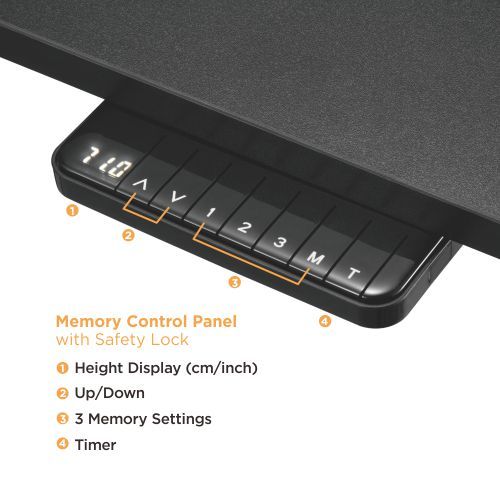

●Easy-to-Use Press Controller: makes height adjustment easy

●3 Programmable Memory: presets save your desired height

●Adjustable Width: fits a variety of desktop shapes and sizes

●Sit/Stand Time Reminder: for regular movement

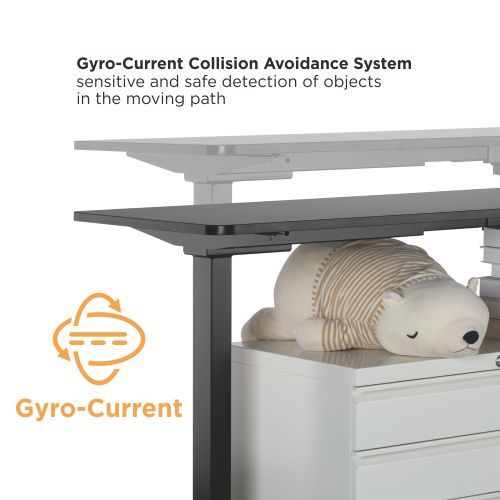

●Collision Avoidance System: safeguards against accidents and injuries

●Strong lifting power with low noise level

●Strong Motor: ensures a very high stability level

Easy-to-Use Press Controller: makes height adjustment easy
3 Programmable Memory: presets save your desired height
Adjustable Width: fits a variety of desktop shapes and sizes
Sit/Stand Time Reminder: for regular movement
Collision Avoidance System: safeguards against accidents and injuries
Strong lifting power with low noise level
Strong Motor: ensures a very high stability level

SPECIFICATIONS

Product Category:	Electric Sit-Stand Desk
Rank:	Standard
Material:	Steel,Aluminum,Plastic

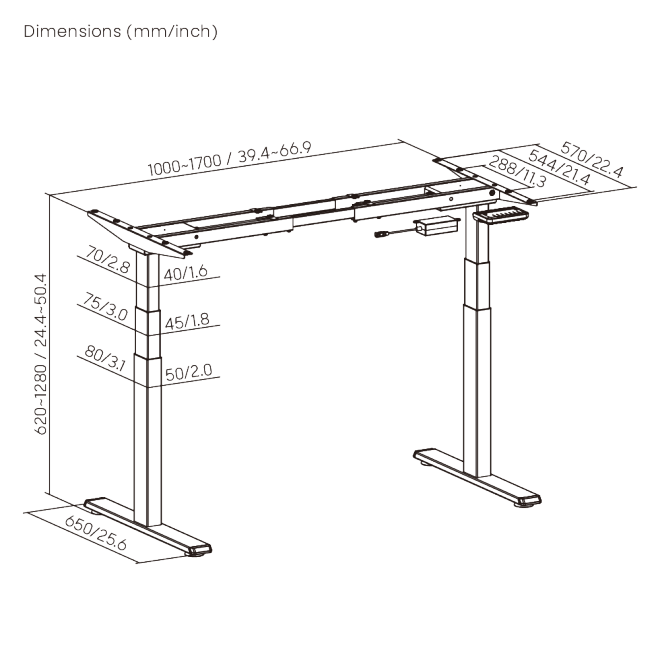

Dimensions:	1000~1700x650x620~1280mm (39.4"~66.9"x25.6"x24.4"~50.4")
Frame Orientation:	Rectangular
Tabletop Size:	(1100~2000)x(700~900)mm ((43.3"~78.7")x(27.6"~35.4"))
Tabletop Thickness:	≥18mm (≥0.71")
Weight Capacity:	100kg (220lbs)
Width Range:	1000~1700mm (39.4"~66.9")

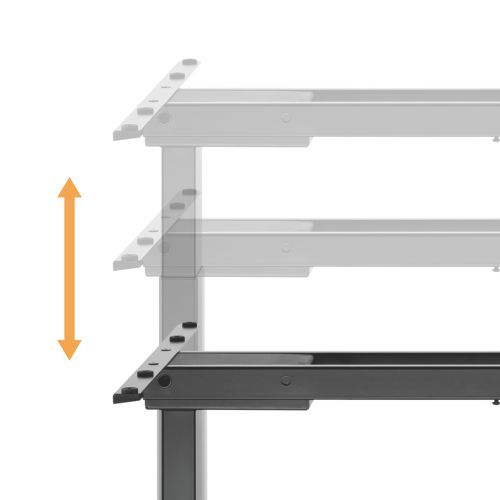

Height Range:	620~1280mm (24.4"~50.4")
Column Design:	Standard Column
Column Segments:	Three Stage Column
Column Size:	40X70、45X75、50X80mm
Leg Quantity:	Two Legs

Frame Color:	Matte Black,Matte White,Matte Grey
Adjustable Feet Pad:	Yes
Motor Quantity:	2
Power Input:	100~240V
Power Cord Length:	3m (9.8ft)
Max. Speed:	38mm/s
Controller Type:	Button Control Panel
Time Reminder:	Yes
Suggested Operating Temperature:	-5℃~40℃
IP Grade:	IP20
Certification:	AS/NZS Report for National Differences,CB,CE,FCC,RoHS,UKCA
Accessory Kit Package:	Normal/Ziplock Polybag
Solid Wood Included:	No
Controller Type:	CT12-23/CT12-23U

Product Category:	Electric Sit-Stand Desk
Rank:	Standard
Material:	Steel,Aluminum,Plastic
Dimensions:	1000~1700x650x620~1280mm (39.4"~66.9"x25.6"x24.4"~50.4")
Frame Orientation:	Rectangular
Tabletop Size:	(1100~2000)x(700~900)mm ((43.3"~78.7")x(27.6"~35.4"))
Tabletop Thickness:	≥18mm (≥0.71")
Weight Capacity:	100kg (220lbs)
Width Range:	1000~1700mm (39.4"~66.9")
Height Range:	620~1280mm (24.4"~50.4")
Column Design:	Standard Column
Column Segments:	Three Stage Column
Column Size:	40X70、45X75、50X80mm
Leg Quantity:	Two Legs

Frame Color:	Matte Black,Matte White,Matte Grey
Adjustable Feet Pad:	Yes
Motor Quantity:	2
Power Input:	100~240V
Power Cord Length:	3m (9.8ft)
Max. Speed:	38mm/s
Controller Type:	Button Control Panel
Time Reminder:	Yes
Suggested Operating Temperature:	-5℃~40℃
IP Grade:	IP20
Certification:	AS/NZS Report for National Differences,CB,CE,FCC,RoHS,UKCA
Accessory Kit Package:	Normal/Ziplock Polybag
Solid Wood Included:	No
Controller Type:	CT12-23/CT12-23U

VIDEO

How to Install | M08-23DE

RESOURCES

Brateck M08-23DE-Contemporary Dual Sit-Stand Desk Frame

PDF
