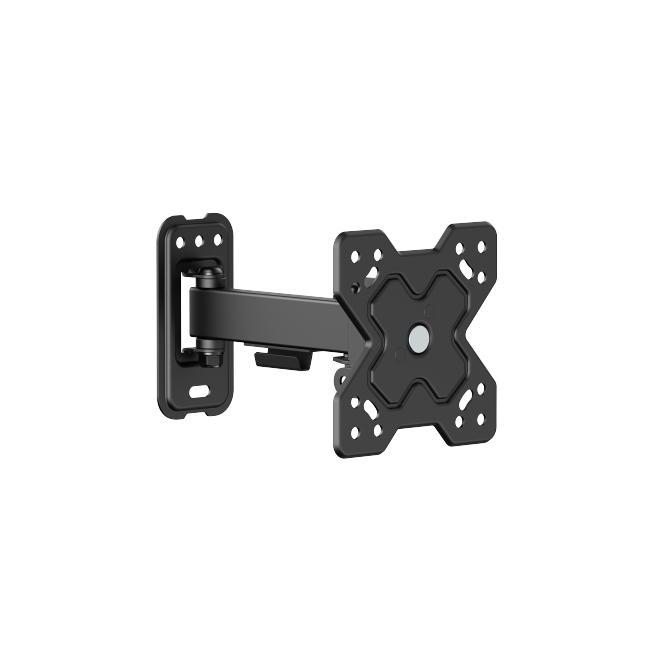

Economy Full-motion TV Wall Mount LDA40-111 Fits Most 13"-32" Flat Panel TVs from china(chinese)

LDA40-111

Economy Full-motion TV Wall Mount

Fits Most 13"-32" Flat Panel TVs

Description

The LDA40-111 Economy Full-motion TV Wall Mount is the ultimate blend of style and functionality. With Portrait and Landscape Orientation options and easy installation with the Detachable VESA Plate Design, it ensures a seamless viewing experience. Enjoy smooth adjustments, coupled with cable management for a tidy setup. Elevate home entertainment effortlessly with our Economy Full-motion TV Wall Mount.

Color:

FEATURES

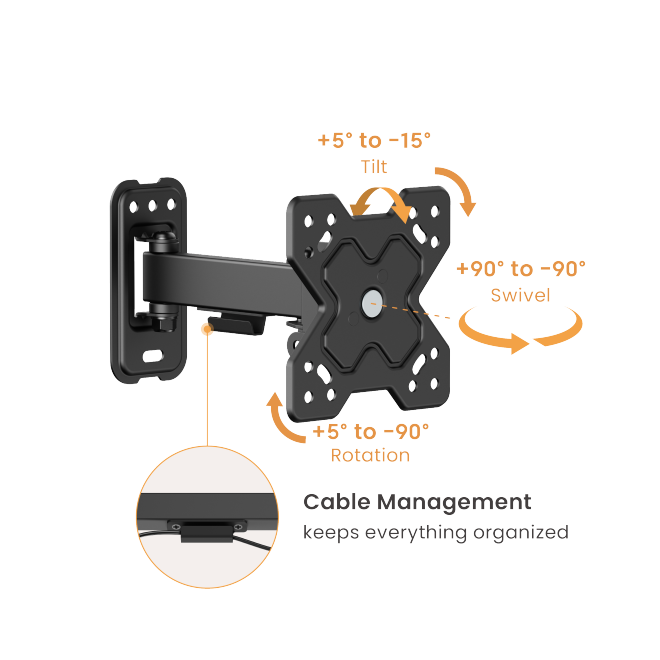

●Free-Tilting Design: makes easy forward or backward adjustment for better viewing and reduced glare

●Portrait and Landscape Orientation: matches different viewing needs

●Swiveling Arm(s): offer(s) maximum viewing flexibility (makes every seat the best seat)

●Detachable VESA Plate Design: enables easy installation

●Cable Management: keeps everything organized

Free-Tilting Design: makes easy forward or backward adjustment for better viewing and reduced glare
Portrait and Landscape Orientation: matches different viewing needs
Swiveling Arm(s): offer(s) maximum viewing flexibility (makes every seat the best seat)
Detachable VESA Plate Design: enables easy installation
Cable Management: keeps everything organized

SPECIFICATIONS

Product Category:	Full-motion TV Wall Mount
Rank:	Economy
Material:	Steel
Metal Sheet Thickness:	VESA Panel THK=1.8mm cold-rolled sheet,Wall Plate THK=1.8mm cold-rolled sheet (VESA Panel THK=0.071" cold-rolled sheet,Wall Plate THK=0.071" cold-rolled sheet)
Pipe Size:	30x15x1.2mm Square Steel Tube (1.2"x0.59"x0.047" Square Steel Tube)
Surface Finish:	Powder Coating
Color:	Fine Texture Black

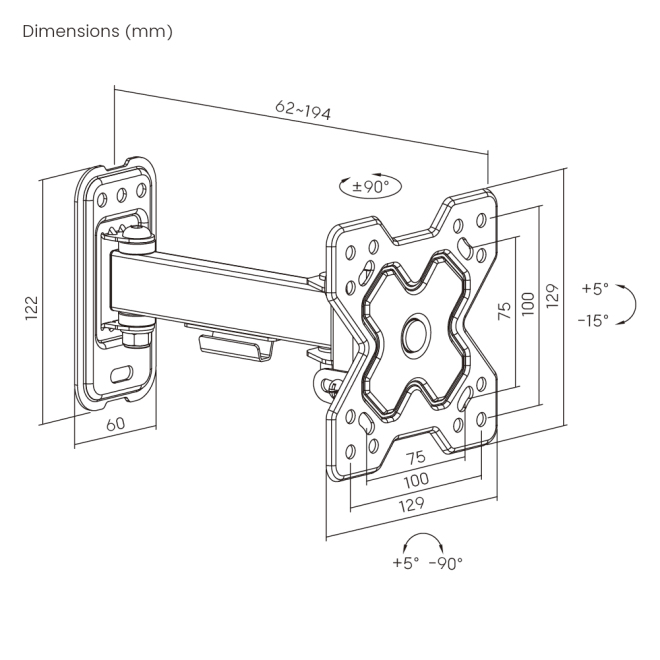

Dimensions:	194x129x129mm (7.6"x5.1"x5.1")
Fit Screen Size:	13"-32"
Fit Curved TV:	No
Mounting Hole Pattern:	VESA Only
VESA Compatible:	75x75,100x100
Max. Mounting Hole:	100x100
Weight Capacity:	20kg (44lbs)
Strength Tested:	4 Times Approved

Profile:	62~194mm (2.4"~7.6")
Tilt Range:	+5°~-15°
Swivel Range:	+90°~-90°
Screen Rotation:	+5°~-90°
Screen Freely Tilting:	No
Installation:	Solid Wall,Single Stud
Panel Type:	Detachable Panel
Wall Plate Type:	Fixed Wall Plate
AV Component Shelf:	No
Direction Indicator:	Yes
Cable Management:	Yes
Anti-theft:	No
Bubble Level:	Hook-on Bubble Level(Included in Components Package)
Accessory Kit Package:	Normal/Ziplock Polybag,Compartment Polybag
Silk Screen:	Can be silkscreen printed

Product Category:	Full-motion TV Wall Mount
Rank:	Economy
Material:	Steel
Metal Sheet Thickness:	VESA Panel THK=1.8mm cold-rolled sheet,Wall Plate THK=1.8mm cold-rolled sheet (VESA Panel THK=0.071" cold-rolled sheet,Wall Plate THK=0.071" cold-rolled sheet)
Pipe Size:	30x15x1.2mm Square Steel Tube (1.2"x0.59"x0.047" Square Steel Tube)
Surface Finish:	Powder Coating
Color:	Fine Texture Black
Dimensions:	194x129x129mm (7.6"x5.1"x5.1")
Fit Screen Size:	13"-32"
Fit Curved TV:	No
Mounting Hole Pattern:	VESA Only
VESA Compatible:	75x75,100x100
Max. Mounting Hole:	100x100
Weight Capacity:	20kg (44lbs)
Strength Tested:	4 Times Approved

Profile:	62~194mm (2.4"~7.6")
Tilt Range:	+5°~-15°
Swivel Range:	+90°~-90°
Screen Rotation:	+5°~-90°
Screen Freely Tilting:	No
Installation:	Solid Wall,Single Stud
Panel Type:	Detachable Panel
Wall Plate Type:	Fixed Wall Plate
AV Component Shelf:	No
Direction Indicator:	Yes
Cable Management:	Yes
Anti-theft:	No
Bubble Level:	Hook-on Bubble Level(Included in Components Package)
Accessory Kit Package:	Normal/Ziplock Polybag,Compartment Polybag
Silk Screen:	Can be silkscreen printed
