Economy Full-motion TV Wall Mount LDA40-223 Fits Most 13"-43" Flat Panel TVs from china(chinese)

LDA40-223

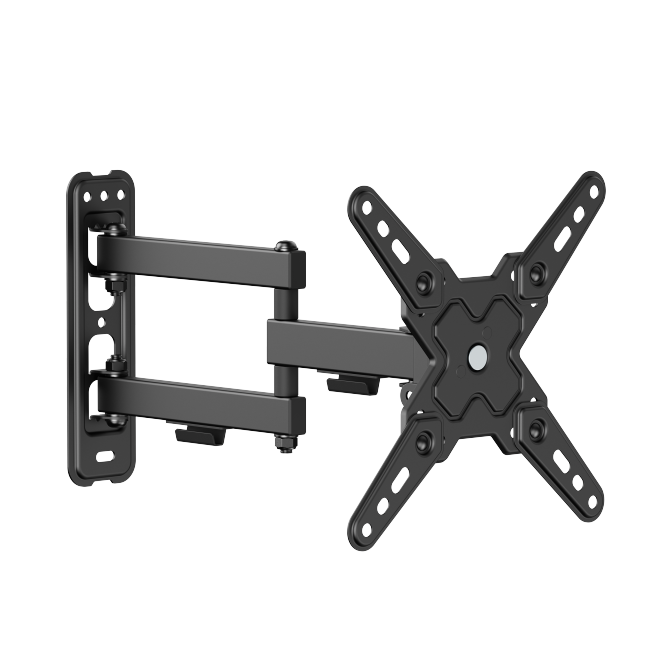

Economy Full-motion TV Wall Mount

Fits Most 13"-43" Flat Panel TVs

Description

The LDA40-223 Economy Full-motion TV Wall Mount is the ultimate blend of style and functionality. With Portrait and Landscape Orientation options, the Detachable Extension Plate for larger TVs, and easy installation with the Detachable VESA Plate Design, it ensures a seamless viewing experience. Enjoy smooth adjustments, coupled with cable management for a tidy setup. Elevate home entertainment effortlessly with our Economy Full-motion TV Wall Mount.

Color:

FEATURES

●Free-Tilting Design: makes easy forward or backward adjustment for better viewing and reduced glare

●Portrait and Landscape Orientation: matches different viewing needs

●Swiveling Arm(s): offer(s) maximum viewing flexibility (makes every seat the best seat)

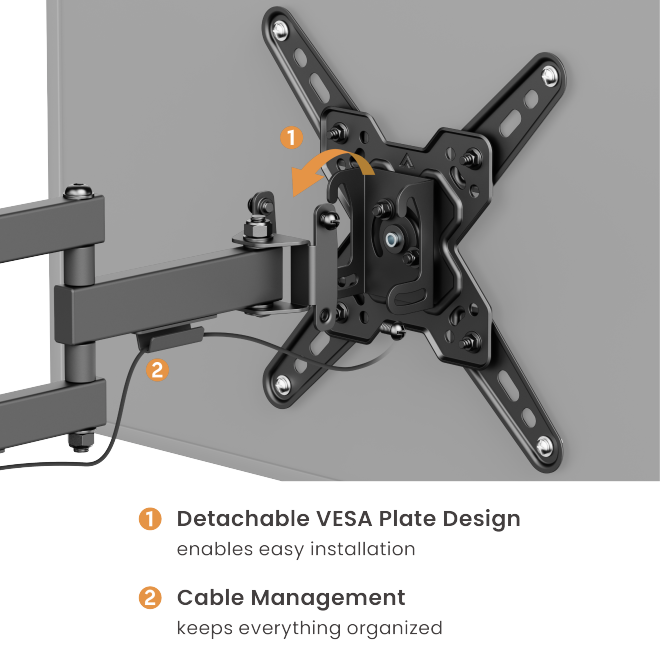

●Detachable VESA Plate Design: enables easy installation

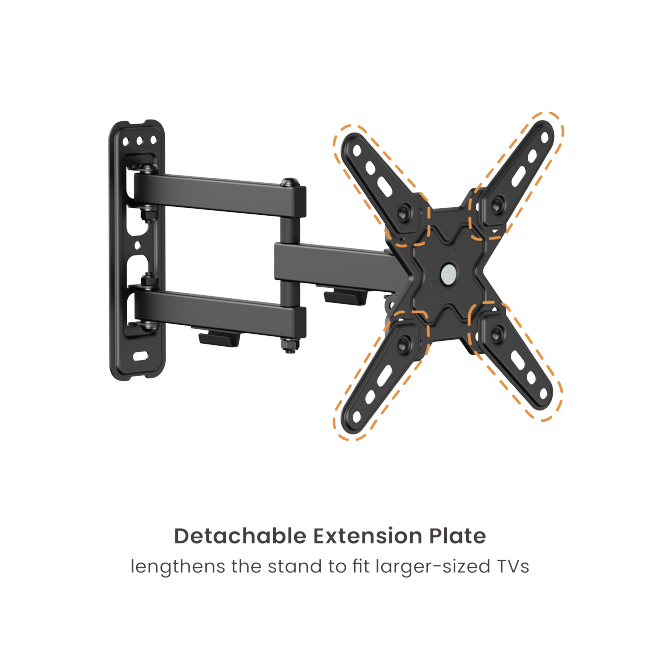

●Detachable Extension Plate: lengthens the stand to fit larger sized TVs

●Cable Management: keeps everything organized

Free-Tilting Design: makes easy forward or backward adjustment for better viewing and reduced glare
Portrait and Landscape Orientation: matches different viewing needs
Swiveling Arm(s): offer(s) maximum viewing flexibility (makes every seat the best seat)
Detachable VESA Plate Design: enables easy installation
Detachable Extension Plate: lengthens the stand to fit larger sized TVs
Cable Management: keeps everything organized

SPECIFICATIONS

Product Category:	Full-motion TV Wall Mount
Rank:	Economy
Material:	Steel
Metal Sheet Thickness:	VESA Panel THK=1.8mm cold-rolled sheet,Wall Plate THK=1.8mm cold-rolled sheet (VESA Panel THK=0.071" cold-rolled sheet,Wall Plate THK=0.071" cold-rolled sheet)
Pipe Size:	30x15x1.2mm Square Steel Tube (1.2"x0.59"x0.047" Square Steel Tube)
Surface Finish:	Powder Coating
Color:	Fine Texture Black

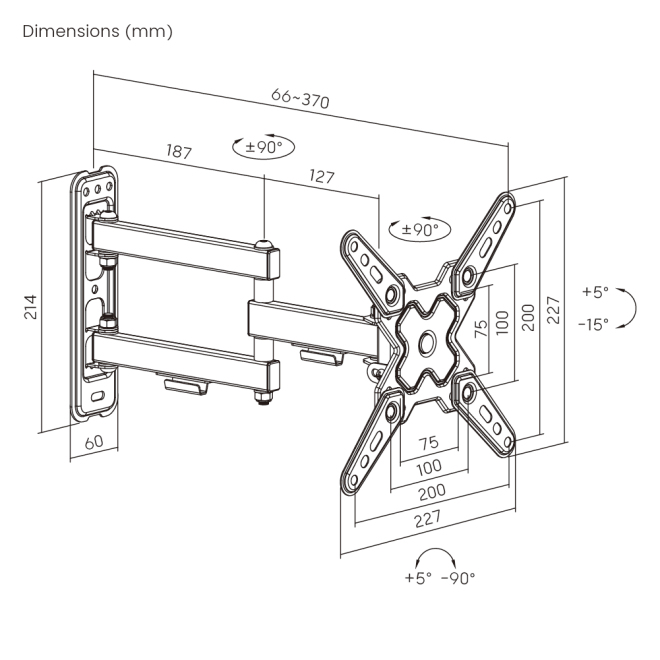

Dimensions:	370x227x227mm (14.6"x8.9"x8.9")
Fit Screen Size:	13"-43"
Fit Curved TV:	Yes
Mounting Hole Pattern:	VESA Only
VESA Compatible:	75x75,100x100,100x200,200x100,200x200
Max. Mounting Hole:	200x200
Weight Capacity:	20kg (44lbs)
Strength Tested:	4 Times Approved

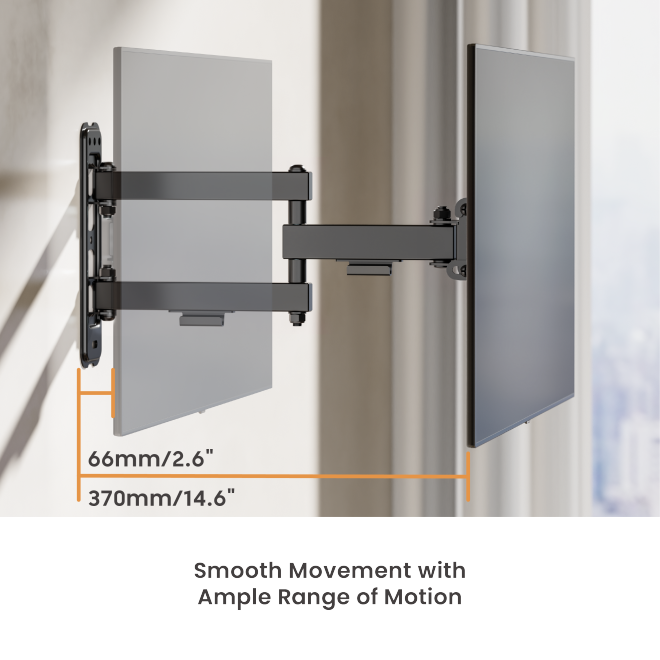

Profile:	66~370mm (2.6"~14.6")

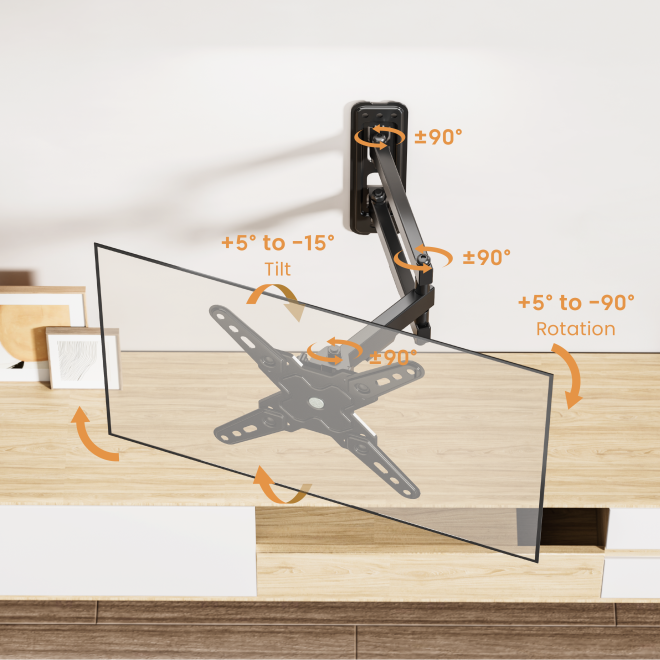

Tilt Range:	+5°~-15°
Swivel Range:	+90°~-90°
Screen Rotation:	+5°~-90°
Screen Freely Tilting:	No
Installation:	Solid Wall,Single Stud
Panel Type:	Detachable Panel
Wall Plate Type:	Fixed Wall Plate
AV Component Shelf:	No
Direction Indicator:	Yes
Cable Management:	Yes
Anti-theft:	No
Bubble Level:	Hook-on Bubble Level(Included in Components Package)
Accessory Kit Package:	Normal/Ziplock Polybag,Compartment Polybag
Silk Screen:	Can be silkscreen printed
